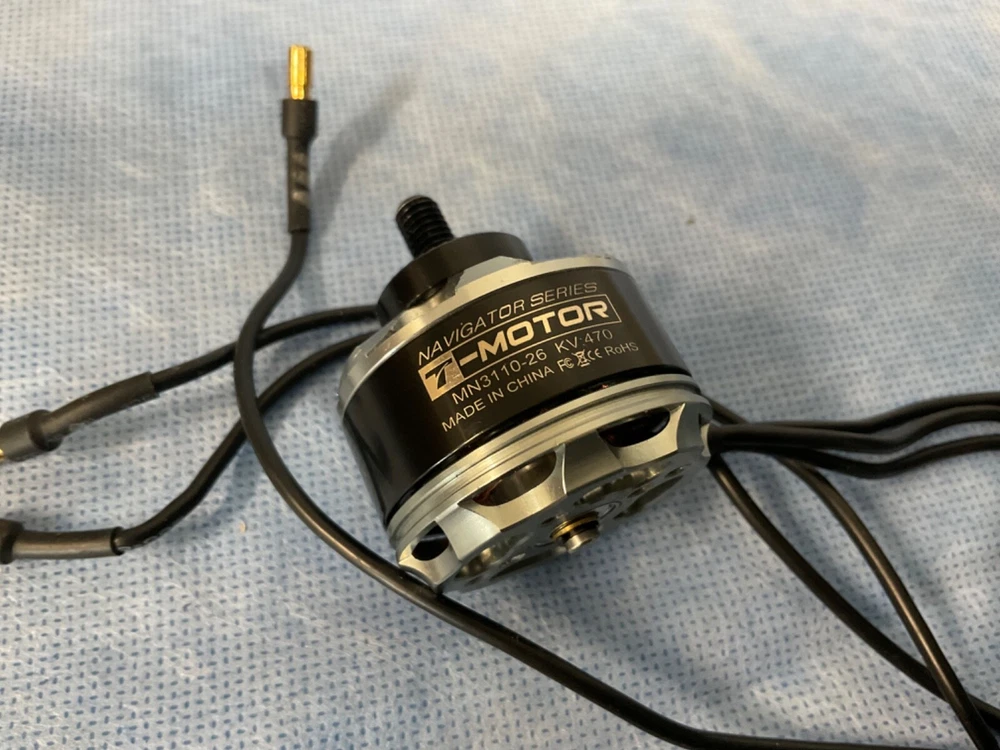

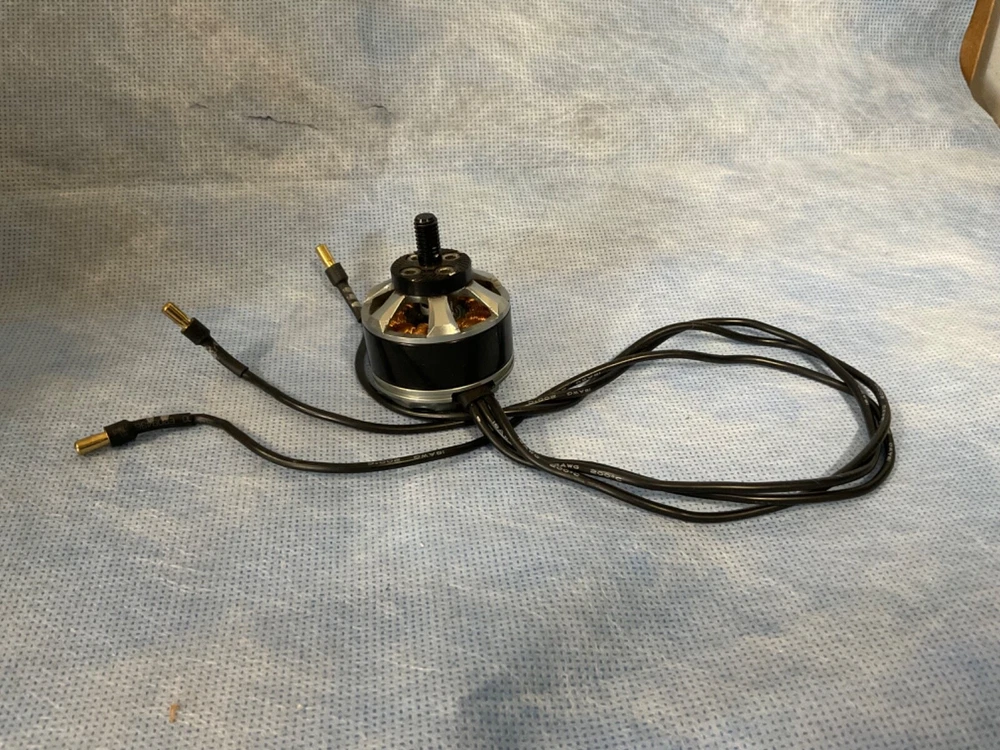

T-motor MN3110 KV470 Brushless Motors For Robotics RC Drones Rotors
$12.35
In Stock
Product Specifications
MPN: ATM05024
Max Continuous Power(W)180S: 330W/466W/481W
No.of Cells(Lipo): 2-4S
Model: MN3110 KV470
Shaft Diameter: 4mm
Weight (g): 80g
ldle current(10)@10v(A): 0.4A Or 0.5A
Stator Diameter: 31mm
Max Continuous current(A)180S: 15A/21A/26A
UPC: Does not apply
Motor Dimension (Dia.*Len): Φ37.7×28.5mm
Compatible Brand: Universal, For 21st Century Toys, For A&A Toys, For ABC Hobby, For A Bug's Life, For Academy
Country/Region of Manufacture: China
Brand: T-Motor
Quantity: 1
Max. efficiency current: (2-8A)>84%/(3-10A)>80%/(3-10A)>81%
Stator Length: 10mm
Configuration: 12N14P
KV: 470/700/780
Internal resistance: 135mΩ/92mΩ/71mΩ
Compatible Vehicle Type: Skateboard, Robotics, Other, Airplanes, Helicopters, Industrial & Service Vehicles, Quadcopters & Multicopters, Tanks & Military Vehicles
gtin13: Does not apply
Type: Brushless
Outrunner/Inrunner: Outrunner
Quantity:
Product Description
Brand new unit Drone motor. FREE Shipping!!
